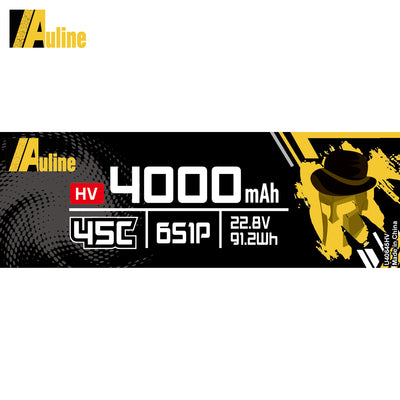

HV LiPo Battery - 4000mAh 6S1P 22.8V 45C

Subtitle: High Voltage 3.8V/4.35V, Soft Pack LiPo Battery.

2. Product Purchase Module

SKU Code: U40645HV

Inquiry Price (Regular price $1.00 for display only, contact info@au-line.com for actual quotation)

Connector Options: XT60 Plug, XT90 Plug, XT150 Plug,

Item	Specification
Brand	AULINE
Product Model	U40645HV
Battery Type	High Voltage LiPo Battery
Series Configuration	6S1P
Nominal Voltage	22.8V
Full Charge Cut-off Voltage	26.1V
Discharge Cut-off Voltage	19.8V
Rated Capacity	4000mAh
Total Weight	620g
Dimension (HWL)	3850170mm
Energy Density	145Wh/kg
Continuous Discharge Rate	25C（Burst 45C for 5 Seconds, Several cycles）
Matching Plug Options	XT60 / XT90 / XT150
Application	Industrial UAV, VTOL Aircraft, Power Inspection Drone, Logistics Transport Drone, Aerial Survey Mapping UAV

High-voltage battery platform, full voltage of single cell was 4.35v.

10-15% Lighter weight than normal voltage LiPo battery base one same capacity battery pack.

Must use dedicated lithium battery charger matching this pack voltage (Max charging voltage 4.35v/battery cell); prohibit mismatched chargers to avoid overcharging and swelling.
Strictly avoid over-discharging below 3.3V/cell cut-off voltage to prevent permanent capacity attenuation and cell failure.
For long-term storage over 7 days, adjust single cell voltage to nominal storage voltage 3.8V/battery cell and store in a dry environment below 25℃.
Not recommended for FPV racing drones with frequent extreme acceleration and instantaneous overload flight.
