Specification

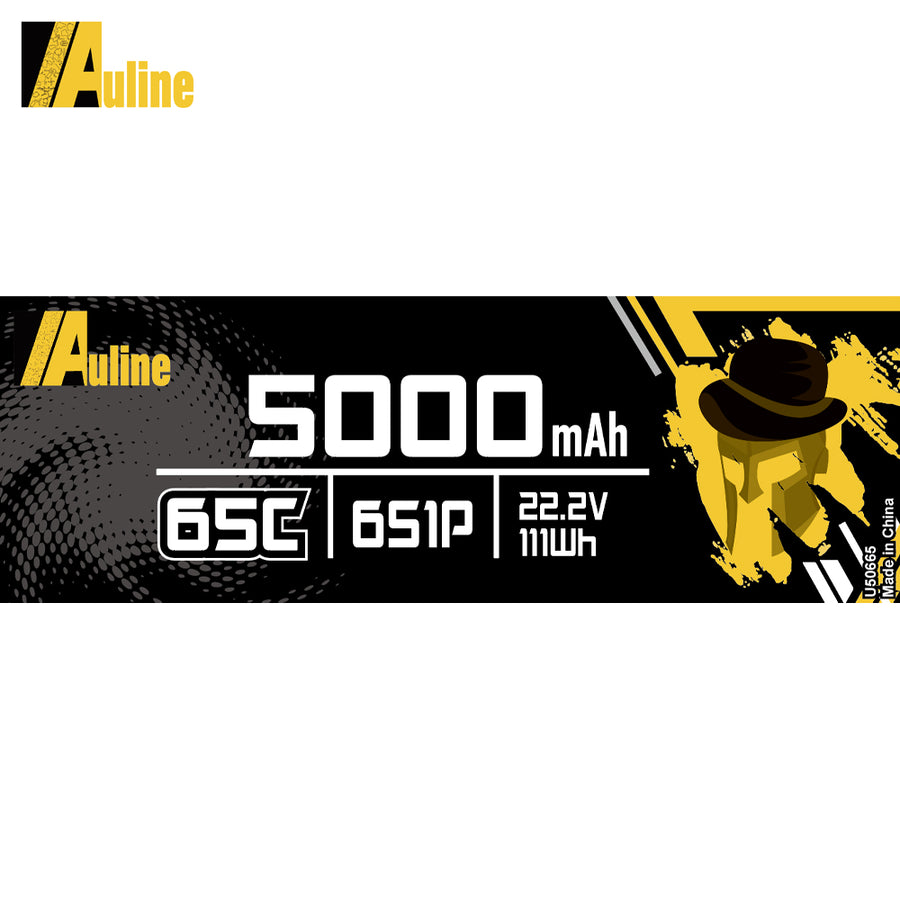

LiPo Battery - 5000mAh 6S1P 22.8V 65C
Subtitle: High Voltage 3.7V/4.25V, Soft Pack LiPo Battery.
2. Product Purchase Module
SKU Code: U50665
Inquiry Price (Regular price $1.00 for display only, contact info@au-line.com for actual quotation)
Connector Options: XT60 Plug, XT90 Plug, XT150 Plug,
3. Core Product Parameter Table
| Item | Specification |
|---|---|
| Brand | AULINE |
| Product Model | U50665 |
| Battery Type | LiPo Battery |
| Series Configuration | 6S1P |
| Nominal Voltage | 22.2V |
| Full Charge Cut-off Voltage | 25.5V |
| Discharge Cut-off Voltage | 19.8V |
| Rated Capacity | 5000mAh |
| Total Weight | 830g |
| Dimension (H*W*L) | 50*49*167mm |
| Energy Density | 148Wh/kg |
| Continuous Discharge Rate | 40C（Burst 65C for 5 Seconds, Several cycles） |
| Matching Plug Options | XT60 / XT90 / XT150 |
| Application | Industrial UAV, VTOL Aircraft, Power Inspection Drone, Logistics Transport Drone, Aerial Survey Mapping UAV |
4. Product Highlights Section
Much high Discharge Rate than same capacity HV LiPo battery.
5. Application Scenarios Module
- Small and medium-sized drones / UAV short flights.
6. Usage Precautions
- Must use dedicated lithium battery charger matching this pack voltage (Max charging voltage 4.25v/battery cell); prohibit mismatched chargers to avoid overcharging and swelling.
- Strictly avoid over-discharging below 3.3V/cell cut-off voltage to prevent permanent capacity attenuation and cell failure.
- For long-term storage over 7 days, adjust single cell voltage to nominal storage voltage 3.7V/battery cell and store in a dry environment below 25℃.
- Not recommended for FPV racing drones with frequent extreme acceleration and instantaneous overload flight.
