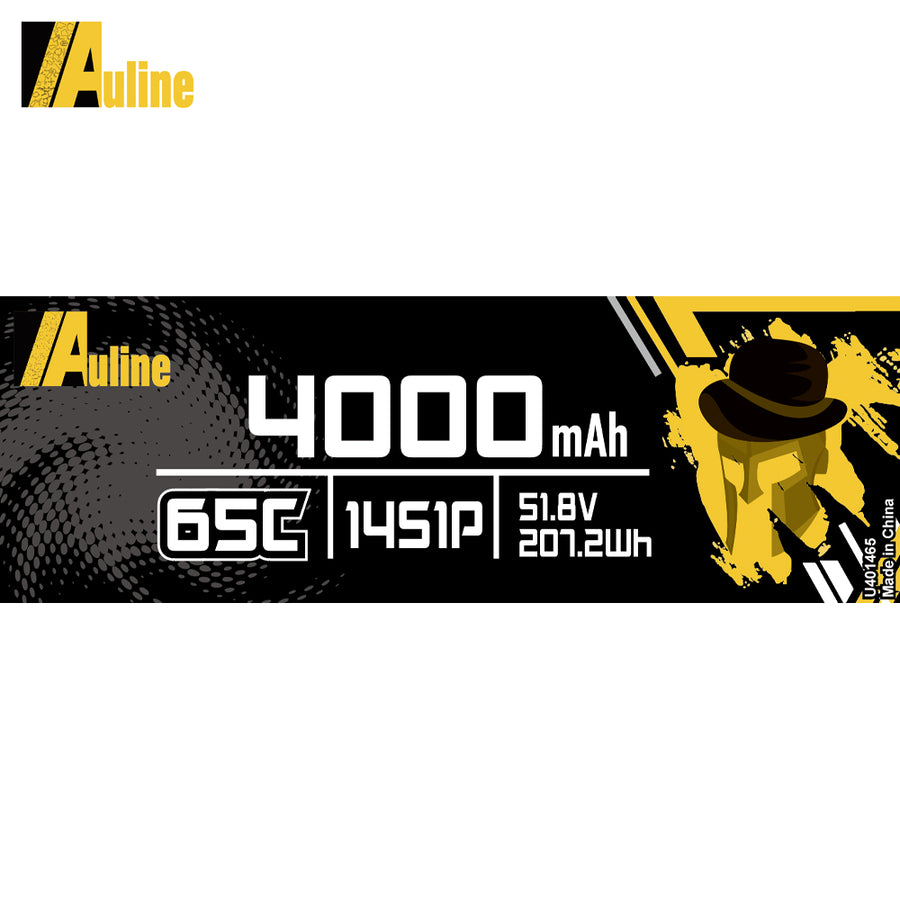

LiPo Battery 4000MAH 14S1P 51.8V 65C XT60/ XT90/ XT150 /EC8
Regular price
$1.00
Product Type: LiPo Battery
Collections: UAV LiPo Battery (NV)
Specification
LiPo Battery - 4000mAh 14S1P 51.8V 65C
Subtitle: High Voltage 3.7V/4.25V, Soft Pack LiPo Battery.
2. Product Purchase Module
SKU Code: U401465
Inquiry Price (Regular price $1.00 for display only, contact info@au-line.com for actual quotation)
Connector Options: XT60 Plug, XT90 Plug, XT150 Plug,
3. Core Product Parameter Table
| Item | Specification |
|---|---|
| Brand | AULINE |
| Product Model | U401465 |
| Battery Type | LiPo Battery |
| Series Configuration | 14S1P |
| Nominal Voltage | 51.8V |
| Full Charge Cut-off Voltage | 59.5V |
| Discharge Cut-off Voltage | 46.2V |
| Rated Capacity | 4000mAh |
| Total Weight | 1680g |
| Dimension (H*W*L) | 100*49*167mm |
| Energy Density | 141Wh/kg |
| Continuous Discharge Rate | 40C（Burst 65C for 5 Seconds, Several cycles） |
| Matching Plug Options | XT60 / XT90 / XT150 |
| Application | Industrial UAV, VTOL Aircraft, Power Inspection Drone, Logistics Transport Drone, Aerial Survey Mapping UAV |
4. Product Highlights Section
Much high Discharge Rate than same capacity HV LiPo battery.
5. Application Scenarios Module
- Small and medium-sized drones / UAV short flights.
6. Usage Precautions
- Must use dedicated lithium battery charger matching this pack voltage (Max charging voltage 4.25v/battery cell); prohibit mismatched chargers to avoid overcharging and swelling.
- Strictly avoid over-discharging below 3.3V/cell cut-off voltage to prevent permanent capacity attenuation and cell failure.
- For long-term storage over 7 days, adjust single cell voltage to nominal storage voltage 3.7V/battery cell and store in a dry environment below 25℃.
- Not recommended for FPV racing drones with frequent extreme acceleration and instantaneous overload flight.
Every Rated Specification, Verified by Real World Testing.
At Auline, product performance is presented through real test data and verified results rather than inflated specifications.
All Auline batteries are tested using the NEWARE CT 4004 5V300A, a professional battery testing system, to accurately measure and document actual capacity and discharge performance.
No inflated capacity. No exaggerated performance.
Just real data, so you know exactly what to expect from the battery you receive.
