Specification

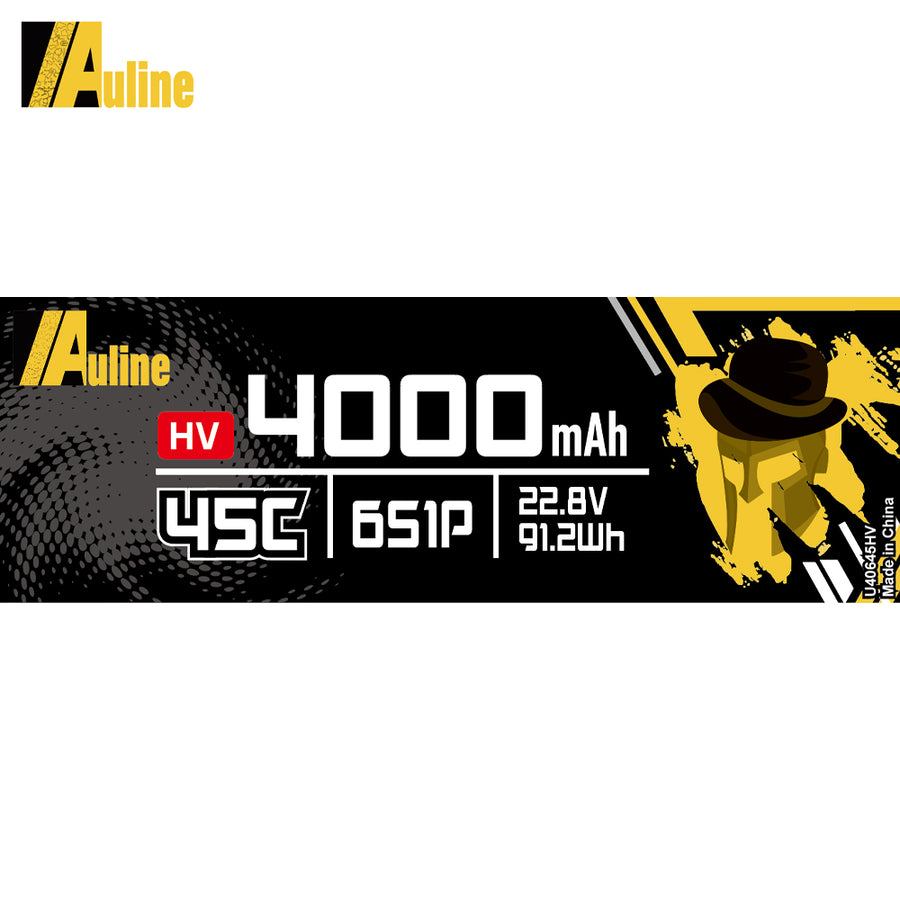

HV LiPo Battery - 4000mAh 6S1P 22.8V 45C
Subtitle: High Voltage 3.8V/4.35V, Soft Pack LiPo Battery.
2. Product Purchase Module
SKU Code: U40645HV
Inquiry Price (Regular price $1.00 for display only, contact info@au-line.com for actual quotation)
Connector Options: XT60 Plug, XT90 Plug, XT150 Plug,
3. Core Product Parameter Table
| Item | Specification |
|---|---|
| Brand | AULINE |
| Product Model | U40645HV |
| Battery Type | High Voltage LiPo Battery |
| Series Configuration | 6S1P |
| Nominal Voltage | 22.8V |
| Full Charge Cut-off Voltage | 26.1V |
| Discharge Cut-off Voltage | 19.8V |
| Rated Capacity | 4000mAh |
| Total Weight | 620g |
| Dimension (H*W*L) | 38*50*170mm |
| Energy Density | 145Wh/kg |
| Continuous Discharge Rate | 25C（Burst 45C for 5 Seconds, Several cycles） |
| Matching Plug Options | XT60 / XT90 / XT150 |
| Application | Industrial UAV, VTOL Aircraft, Power Inspection Drone, Logistics Transport Drone, Aerial Survey Mapping UAV |
4. Product Highlights Section
Card 1: Ultra High Voltage LiPo Battery
High-voltage battery platform, full voltage of single cell was 4.35v.
Card 2: Lighter weight than Normal Voltage LiPo Battery
10-15% Lighter weight than normal voltage LiPo battery base one same capacity battery pack.
5. Application Scenarios Module
- Small and medium-sized drones / UAV short flights.
6. Usage Precautions
- Must use dedicated lithium battery charger matching this pack voltage (Max charging voltage 4.35v/battery cell); prohibit mismatched chargers to avoid overcharging and swelling.
- Strictly avoid over-discharging below 3.3V/cell cut-off voltage to prevent permanent capacity attenuation and cell failure.
- For long-term storage over 7 days, adjust single cell voltage to nominal storage voltage 3.8V/battery cell and store in a dry environment below 25℃.
- Not recommended for FPV racing drones with frequent extreme acceleration and instantaneous overload flight.
